Hy-Fuel Tight-Fit In-Tank Retrofit Kit 40015

  • Sale
  • Regular price $219.00
Shipping calculated at checkout.

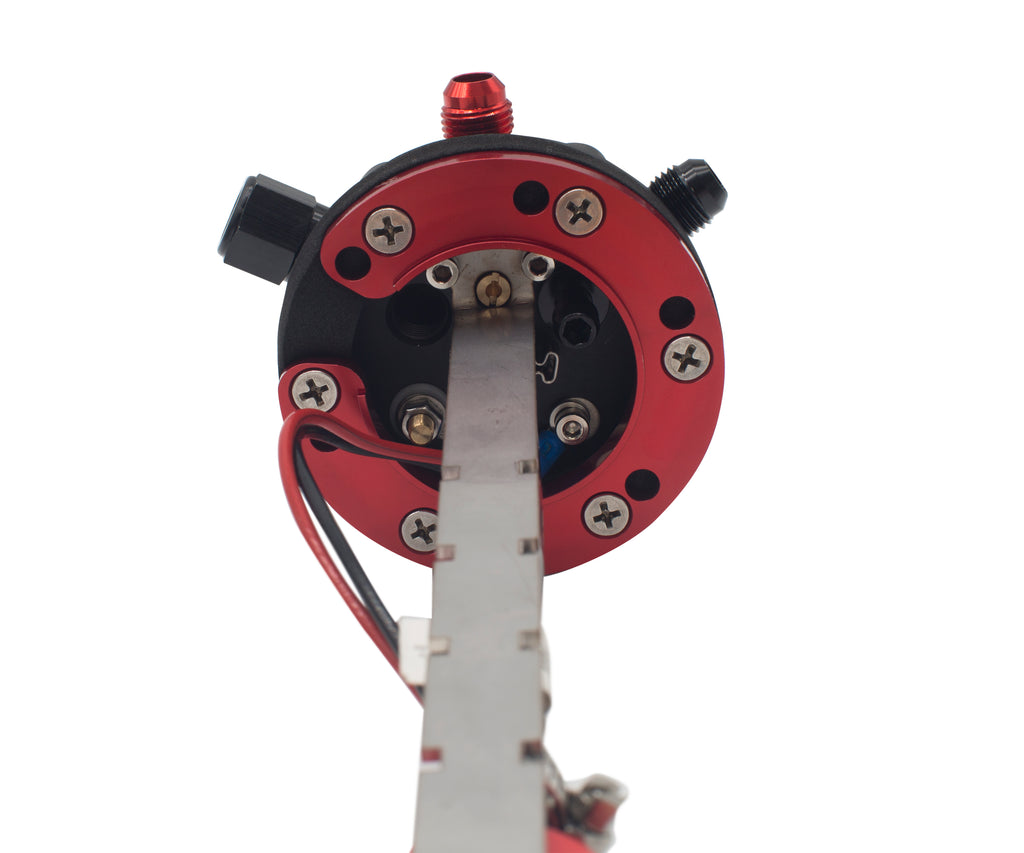

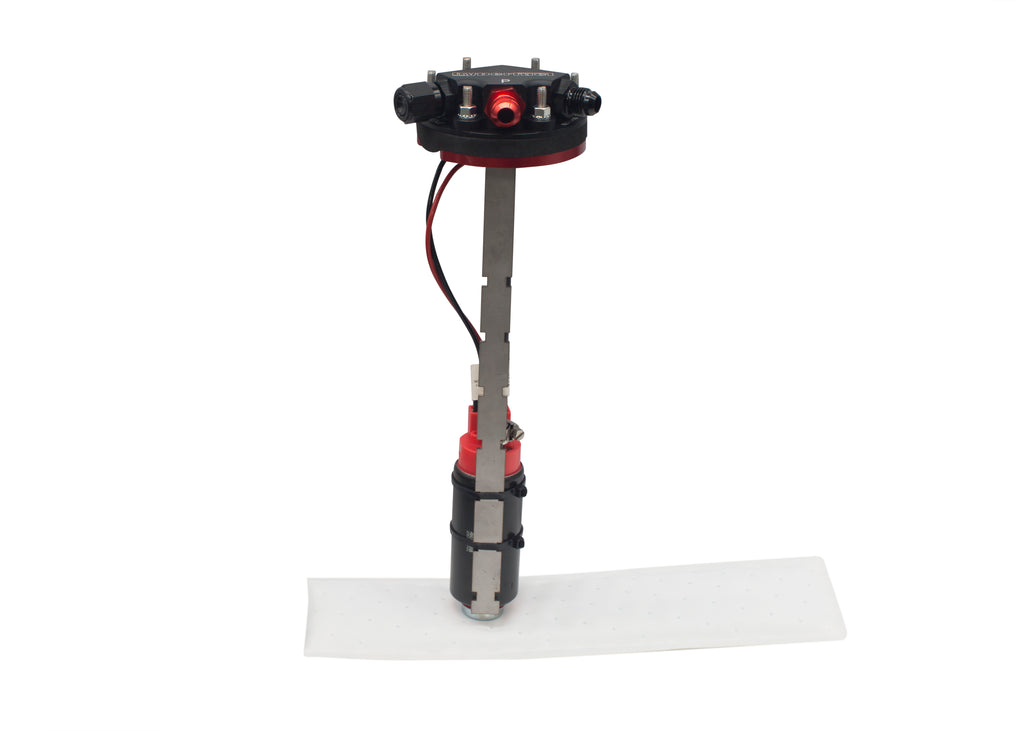

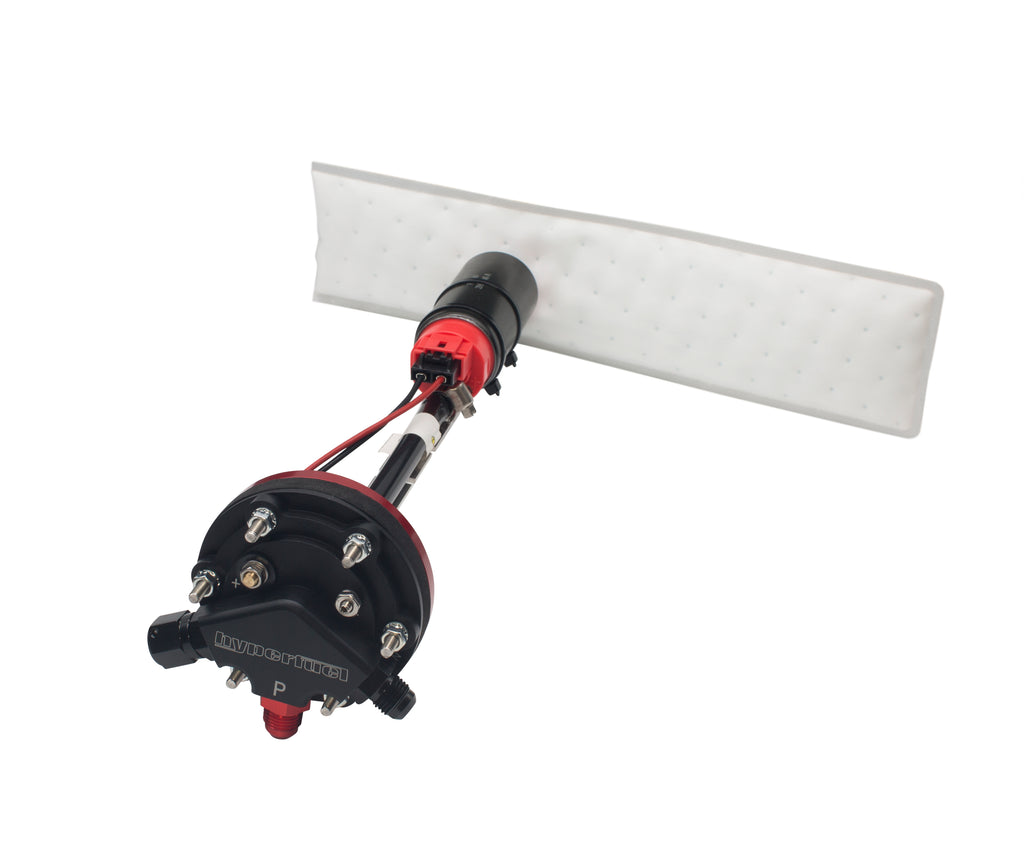

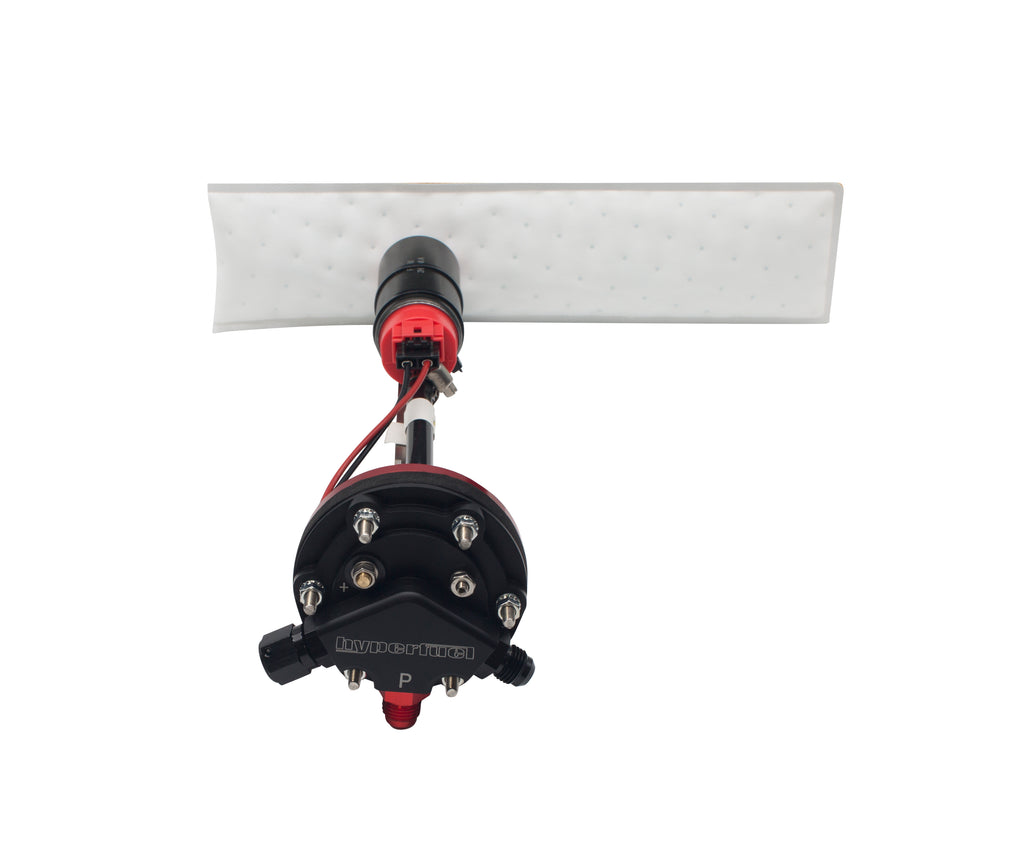

The HyperFuel™ Hy-Fuel Tight-Fit In-Tank Retrofit Kit is a sleek miniature assembly allows you to fit a high-volume fuel system into almost any tank. This application is perfect for original or aftermarket fuel tanks as well as fuel cells with limited space. This application can also be used with a Tanks, Inc. EFI tank™. This kit can be used with EFI or Carbureted applications with the correct bypass regulator. With clearance in mind, this system is designed with only a 1-1/8 inch tall top, including the gasket, for maximum clearance under the rear floor pan. With the pump submerged in fuel, it will run quieter and last longer, providing you with all your fuel needs.


  • Installs in almost any tank with a depth of 6 to 12 inches
  •  Direct fit in Tanks Inc. EFI fuel tanks
  • Low profile design for maximum clearance from the vehicle's floor pan
  •  Billet aluminum construction with precision machined components
  •  Unique O-Ring 360 degree mounting flange for unlimited mounting options.
  • Single high quality 255 L/PH fuel pump for engines producing up to 600 HP.
  • Can be used in Carb or EFI Applications with the use of correct bypass regulator


*Not E-85 Compatible see 40016-1

Horsepower capabilities: These power ratings are at 3Bar (43.5PSI) EFI, pumps are capable of up to 90PSI


600HP - Naturally Aspirated

500HP – Forced Induction


800HP- Naturally Aspirated

700HP – Forced Induction
